Automated PCB Defect Detection Using Advanced Computer Vision

JashDS implemented a sophisticated automated visual inspection system leveraging advanced computer vision technology to transform the client's quality control process.

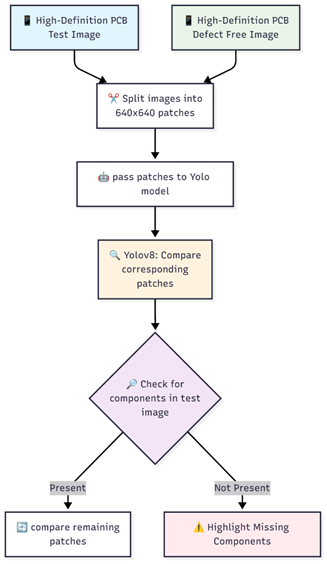

• YOLO-V8-Large Architecture: The solution employed the YOLO-V8-Large deep learning architecture, specifically fine-tuned for PCB defect detection, utilizing a comprehensive patch-based comparison methodology that analyzed test PCBs against master reference images.

• Training and Dataset Development: The technical implementation centered on training the model using a carefully curated dataset of high-definition PCB images standardized, enabling precise component-level analysis across entire board surfaces. 5008 training images and  1252 validation images were used.

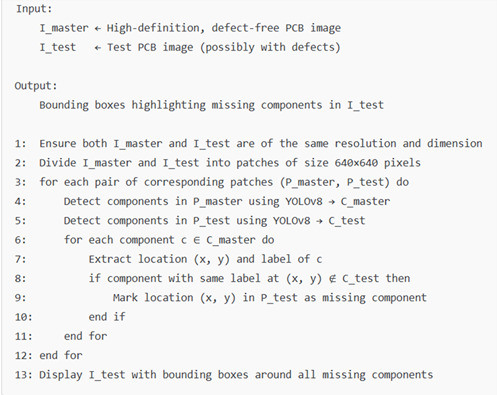

• Algorithmic Approach: The core algorithm performed component detection on both master and test image patches using the trained YOLO model, then executed location-based matching to identify discrepancies and automatically flag missing components with precise bounding box annotations.

• Multi-Scenario Handling: The deployment architecture addressed multiple challenging inspection scenarios, including edge defects, lighting variations, small component detection, and multi-angle inspection requirements while maintaining consistent accuracy under varying production conditions.

Test Results:

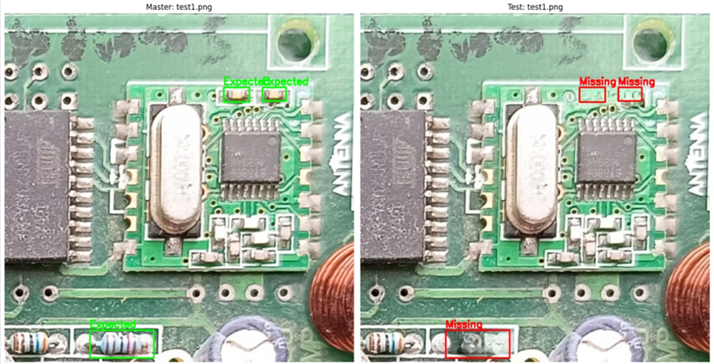

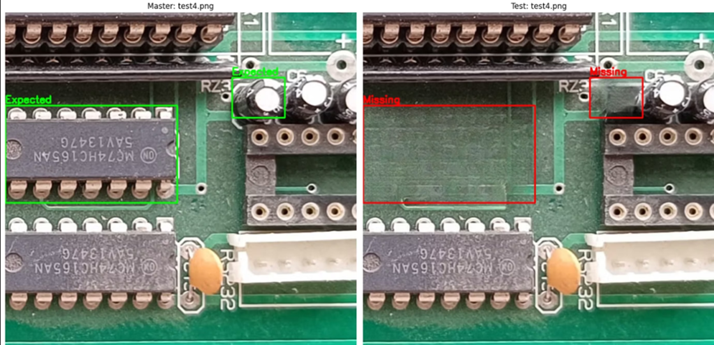

Defect Detection Example

The model predicts PCB defects, highlighting issues with bounding boxes.

Defect Localization

• Accurate defect pinpointing: The model identifies and marks defects precisely.
• High confidence scores: Reliable predictions for PCB defects.
• Clear visualization: Bounding boxes assist inspection understanding.

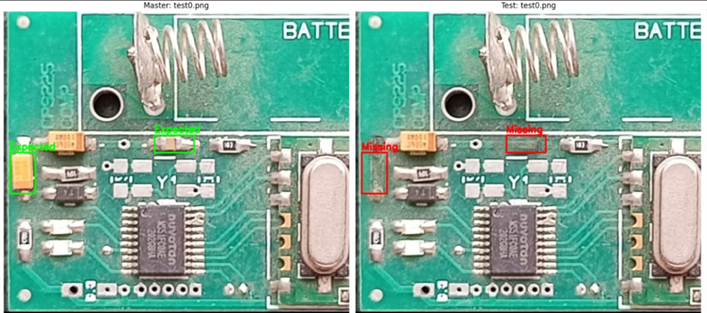

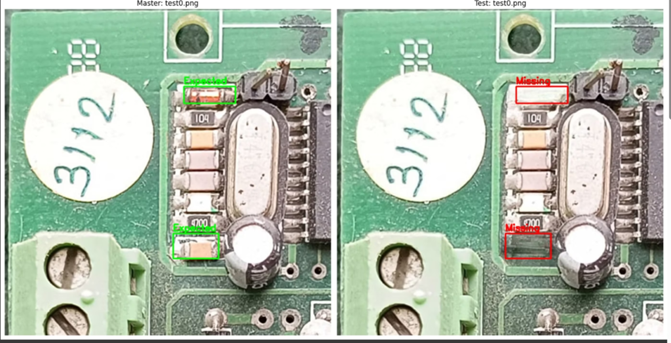

Complex PCB Analysis

• Multiple defect types: Detects soldering and component faults.
• Handling dense board: Maintains accuracy on cluttered PCB designs.

Lighting Variation Handling

• Unaffected by lighting variations
• Handles reflective surfaces
• Fast inference times

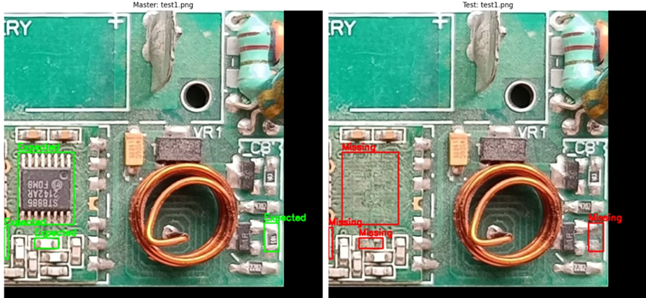

Small Defect Detection

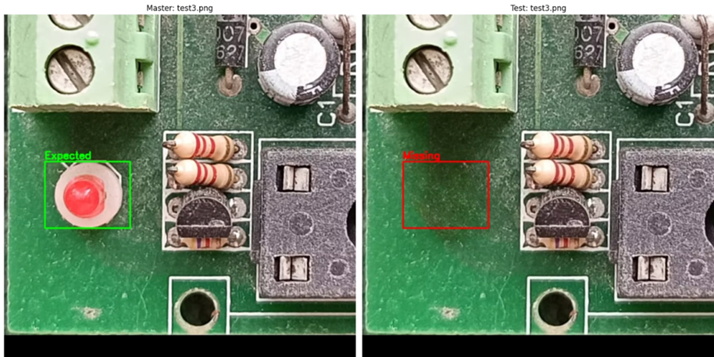

The model was able to detect the missing LED based on the master image.

Multi-Angle Inspection

The model was able to detect the missing capacitor based on the test image.

Final Validation

• Summary of Model Performance: High precision and recall in real-world testing.
• Robustness: Effective on diverse PCB defects and conditions.
